Apply causality and write equations of motion for the system

Assignment Help Mechanical Engineering

Reference no: EM131260574

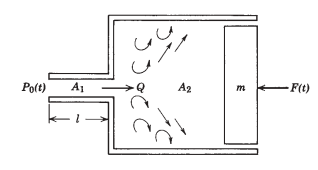

A high-speed hydraulic ram is forced by a pressure source, and we desire to predict how fast it can be stroked. Let the inlet pipe have length l and area A, and consider only inflow Q. The ram has mass m and area A₂ and a force F(t) applied to it. To be conservative, assume that only the static pressure in the ram acts on the piston, that is, all the dynamic pressure is assumed to be lost. Make a bond graph for this system using a Bernoulli resistor to model the dynamic pressure loss. Apply causality and write equations of motion for the system.

Reference no: EM131260574

Questions Cloud

What is advice to musa : Philip Musa can build either a large electronics section or a small one in his Birmingham drugstore. - What is your advice to Musa?

Construct a bond graph model of this system : Construct a bond graph model of this system, including all the dynamics suggested in the figure. Assign causality to show that formulation will be straightforward. This model could be used to test control strategies for an adaptive suspension.

Items of a equipment to produce goods : An organization uses number of items of a equipment to produce goods. Each item is at one LOCATION, of one TYPE and has a DETAILED_DISCRIPTION.

What is the maximum expected profit : Jeff Kaufmann's machine shop sells a variety of machines for job shops. - What is the maximum expected profit that Jeff can achieve? What should Jeff do?

Apply causality and write equations of motion for the system : Make a bond graph for this system using a Bernoulli resistor to model the dynamic pressure loss. Apply causality and write equations of motion for the system.
