Layout of Drawing Sheets:

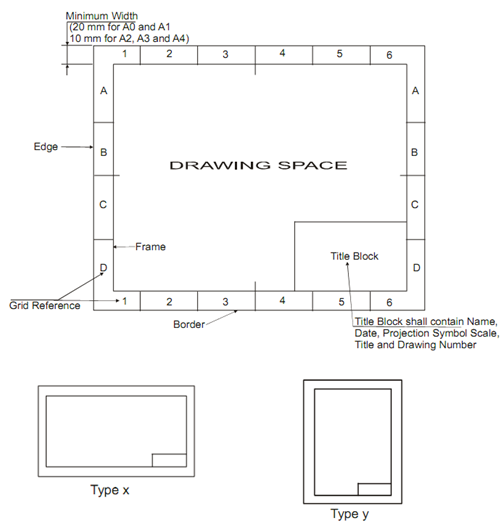

The original drawing must be prepared on the smallest sheet, allowing the necessary resolution and clarity. The common features of a drawing-sheet are like display in Figure like per SP : 46-1998. Drawing-sheets may be used with their longer sides positioned either vertically or horizontally.
