What is the function of 8254 Programmable Interval Timer?

  • 8253 or 8254 Timer Description and Initialization
  • PTI that is programmable Interval Timer/Counter)
  • 8253 and 8254 have exactly similar pin-out.
  • 8254 is a superset of the 8253.
  • This generates accurate time delays
  • This can be used for applications as a real-time clock, a digital one shot, an event counter and a square wave generator and a complicated waveform generator.

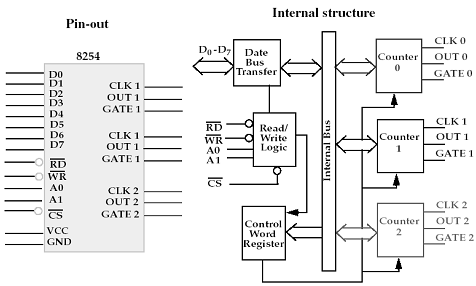

8254 Functional Description:

1615_8254 Functional Description.png
