Magnetic circuits, Electrical Engineering

Assignment Help:

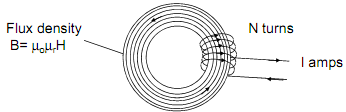

Suppose we have a coil wound onto a ring of material with relative permeability µr.

874_MAGNETIC CIRCUIT.png

Provided that the relative permeability µ>> 1, then the magnetic flux lines will stay inside the core and the flux density is constant all the way round the core (assuming the cross sectional area of the core is constant)
