Draw the equivalent magnetic circuit diagram, Electrical Engineering

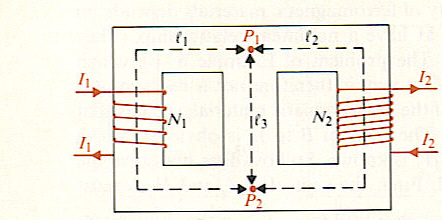

1) Consider the magnetic circuit shown in the figure. Steady currents flow in the windings of N1 and N2 turns on the outside legs of the ferromagnetic core. The core has a cross-sectional area Sc and permeability.

1. Draw the equivalent magnetic circuit diagram

2. Determine an expression for the magnetic flux in the center leg.

1170_Draw the equivalent magnetic circuit diagram.png

Posted Date: 2/22/2013 7:04:52 AM | Location : United States
