Draw logic circuit using 2-input NAND gates, Computer Engineering

Assignment Help:

A combinational circuit has 3 inputs A, B, C and output F.  F is true for following input combinations

  • A is False, B is True
  • A is False, C is True
  • A, B, C are False
  • A, B, C are True

Draw a Logic circuit by using minimum number of 2-input NAND gates.

Ans.

1095_Draw a Logic circuit of a combinational circuit.png

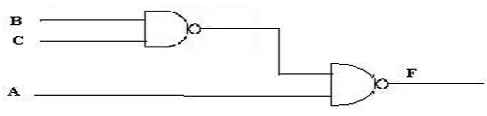

Diagram of a logic circuit of a combinational circuit having 2-input NAND gates.
