Draw a data flow diagram using srd technique, Software Engineering

Assignment Help:

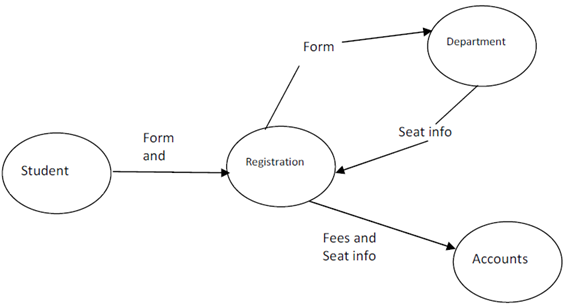

Consider a program that registers students for different programs. The students fill up a form and submit it. This is sent to the departments for confirmation. Once it is confirmed the form also the fees is sent to the account section. Draw a data flow diagram using SRD technique.

Ans:

277_Draw a data flow diagram using SRD technique.png
