Determine the vertical support reactions, Physics

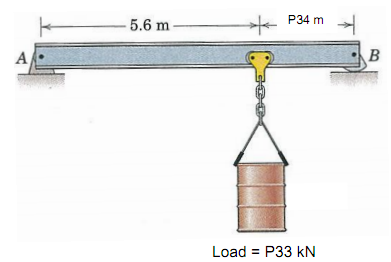

The I beam weighs 0.6kN/m and supports the load which is P33 kN as shown. The distance from the load to point B is P34 m.  Determine the vertical support reactions at A and B.  (A support reaction vertically up is considered positive.)

The vertical reaction in kN at A to 2 decimal places, is,

 ANS

The vertical reaction at Bin KN to 2 decimal places, is,

 ANS

717_Determine the Vertical Support Reactions.png

Posted Date: 2/26/2013 4:44:57 AM | Location : United States






Your posts are moderated
