Determine the support reactions, Mechanical Engineering

Determine the Support Reactions

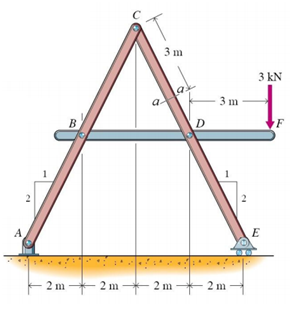

The pin-connected structure shown is supported by a fixed (frictionless) pin at A and by a roller at E . A 3-kN vertical force is applied at F .

a. Determine the support reactions on the pins at A and E .

b. Determine all forces acting on member CDE . Show your results on a report diagram.

c. Determine the components (P,V and M)of the internal equivalent force-couple at section a-a. Show your results on a sketch of the member from pin C to section a-a.

536_Determine the support reactions.png

Posted Date: 2/16/2013 12:16:05 AM | Location : United States
