Determine the Location of Any Zero Crossings

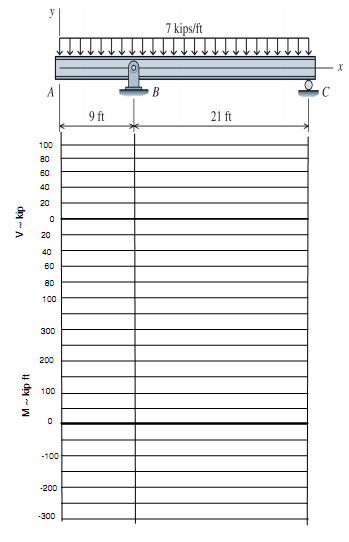

For the loaded as shown below

a. Draw the V & M diagrams on the grid below.

b. Determine the location of any zero crossings of the M diagram relative to support B..
