Context Level Data Flow Diagram

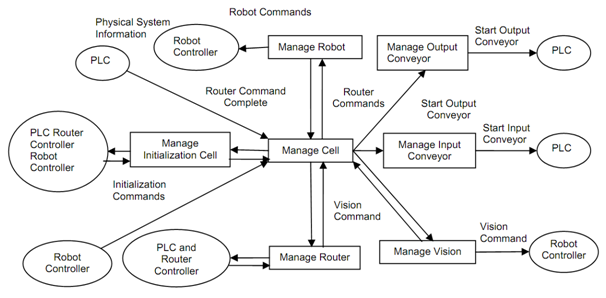

In this section, the cell control model conversation in the former section is demonstrated by the data flow diagram as in following figure of control software. The system was initially implemented to control the prototype cell by using message passing for inter-task communication.



                   2284_Context Level Data Flow Diagram.png



                                                                Figure: Context Level Data Flow Diagram
