CLC or π Filter

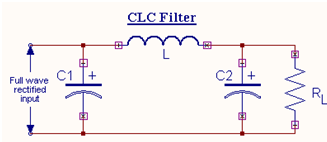

The above diagram displays CLC or π type filter, which mainly contains a capacitor filter, followed through LC section. This filter offers a quite smooth output and is characterized by highly peaked diode currents and poor regulation. Like in L section filter the analysis is acquired as follows.

Procedure: -

EDWin 2000 ->

Schematic Editor:

The circuit figure is drawn through loading components from the library. Proper net assignment and Wiring and has been made. The values are assigned for related components.
