Calculate sending-end voltage at 0.9 pf lagging, Electrical Engineering

Assignment Help:

A three-phase, 34.5-kV, 60-Hz, 40-km transmission line has a per-phase series impedance of 0.2+j0.5/km. The load at the receiving end absorbs 10 MVA at 33 kV. Calculate the following:

(a) Sending-end voltage at 0.9 PF lagging.

(b) Sending-end voltage at 0.9 PF leading.

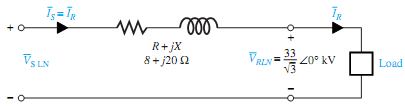

1396_Calculate Sending-end voltage at 0.9 PF lagging.png
