Title Block:

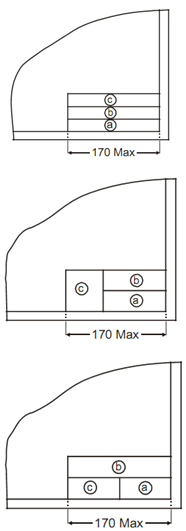

The position of the title block must be in the drawing space as like the portion of the title block enclosing the identification of the drawing is positioned in the bottom right-hand corner of the drawing space both for sheets positioned vertically or horizontally. The title block must preferably enclose of one or more adjoining rectangles. This may be sub-divided in boxes for the insertion of exact information.

928_Title Block.png
