Elements of Dimensioning:

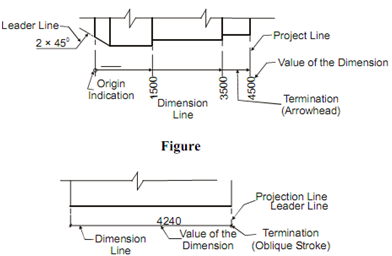

The elements of dimensioning involve projection line, leader line, dimension line, dimension line termination, and dimension and origin indication itself. The different elements of dimensioning are demonstrated in diagrams.

246_Elements of Dimensioning.png
