Circular Form Tool

In shape the circular form tool is circular. It has depth x or projection of distance x generated all around the diameter in the form of annular grooves. The outside diameter of circular form tool is specified in accordance along with the height of profile to be turned. The graphical method is recommended for this aim. Circular form tool is displayed in the diagram below.

1273_Circular Form Tool.png

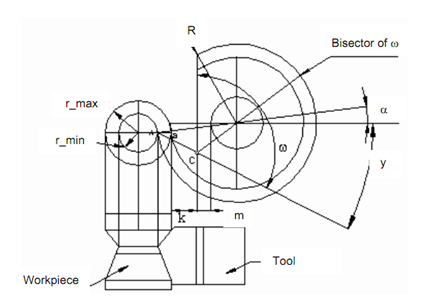

Figure: Determination of Outside Diameter of a Circular Form Tool Graphically
