Which realization requires the least number of gates, Electrical Engineering

Assignment Help:

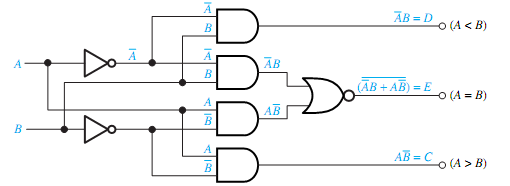

Q. Consider a 1-bit version of the digital comparator shown in Figure. Note that the operation of this circuit is such that whichever output is 1 gives the desired magnitude comparison.

(a) Using NAND and INVERTER gates only, determine the number of gates required.

(b) Using NOR and INVERTER gates only, determine the number of gates required.

(c) Which realization requires the least number of gates?
