What is the specific weight of the timber, Mechanical Engineering

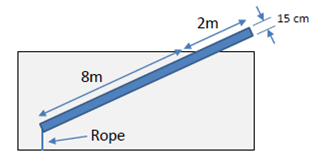

(Buoyancy; force & moment balance) A partially submerged, homogeneous timber is 0.15m by 0.35m in cross-section. What is the specific weight of the timber and the tension in the rope holding one end down?

404_force & moment balance.png

Posted Date: 4/2/2013 1:46:10 AM | Location : United States
