TRANSISTOR CONFIGURATIONS:

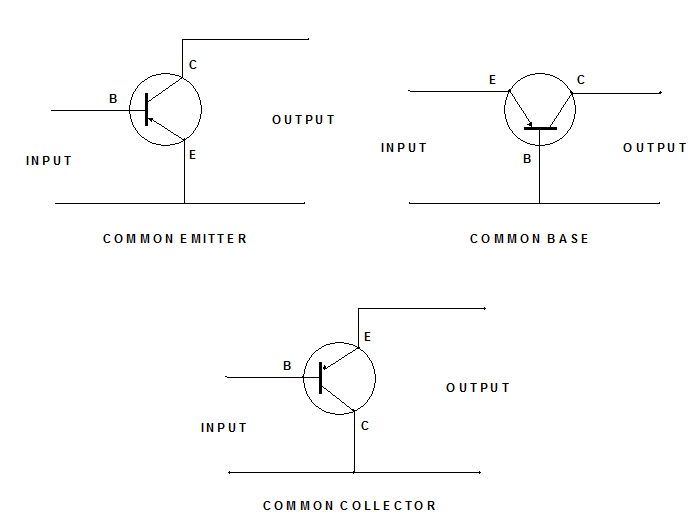

Before a transistor can be used, it must be connected into an input circuit (by two wires) and an output circuit (two wires).  However, because the transistor has only three terminals, one of the terminals must be in both the input and output circuits; this is then called "The Common terminal".  Three circuit configurations are possible and are illustrated in figure.

759_TRANSISTOR CONFIGURATIONS.png

Note that the word 'common' refers to the transistor component connected to both the INPUT and OUTPUT.  In the common emitter configuration for example, the emitter is connected to both the input and output.

Table shows the comparisons of the three transistor configurations





Common Emitter





Common

Base





Common Collector



Current Gain





20 -200



(0.95 - 0.995)



20 - 200



Voltage Gain





100 - 600



500 - 800



<1



Power Gain





Highest



Medium



Lowest



Input Impedance





500 - 2000W



50 - 200W



20kW - 100kW



Output Impedance





10 - 50 KW



100 kW - 1MW



20 - 500W



I/P - O/P Phase





180°



In Phase



In Phase



Typical Use



Normal Amp

Impedance matching

(low to high)

Impedance matching

(high to low)
