The  Octal Inverter 74LS 240

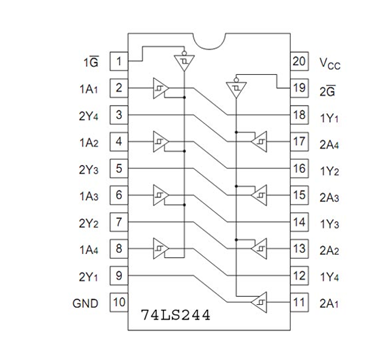

It is  similar  to above  octal  buffer  but with  inverter output. The  logic  diagram is  shown  in figure below .

556_The Octal Butters 74LS244.PNG

                                                                The  Octal Inverter 74LS 240
