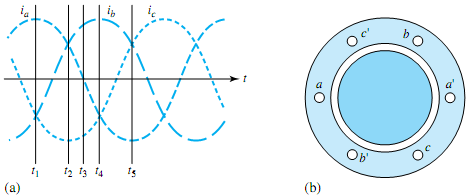

Q. Consider the balanced three-phase alternating currents, shown in Figure, to be flowing in phases a, b, and c, respectively, of the two pole stator structure shown in Figure with balanced three-phase windings. For instants t = t1, t3, and t5 of Figure, Sketch the individual phase flux contributions and their resultants in vectorial form.
