Sequence diagrams , JAVA Programming

Assignment Help:

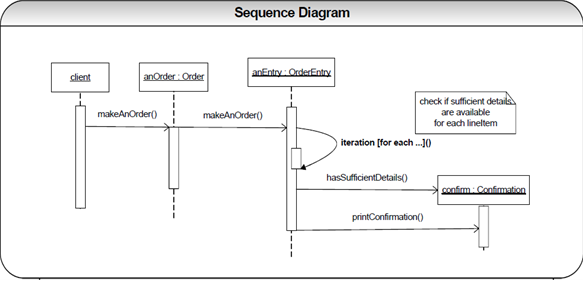

Sequence diagrams are communication diagrams which detail what messages are sent and when. The sequence diagrams are placed according to time. The time performs as you move from top to bottom of the diagram. The objects added in the diagram are given from left to right according to when they take part.



1814_Sequence diagrams.png
