Pin Description of 8086

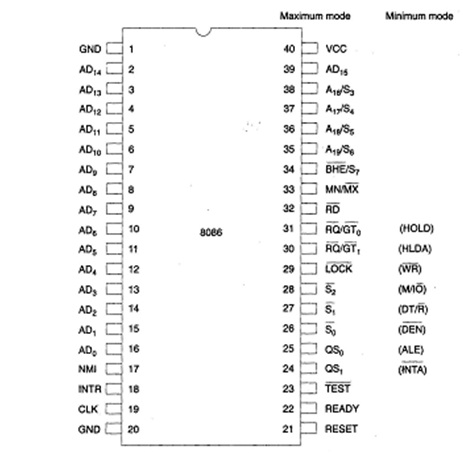

The microprocessor 8086 is a 16-bit CPU available in 3 clock rates, for example 5, 8 and 10 MHz, packaged in a40 pin CERDIP or plastic package. The 8086 operates in multiprocessor configurations orsingle processor to gain high performance. The pin configuration is shown in given figure Some of the pins serve a specific function in minimum mode (single  processor mode) and others function in maximum  mode (multiprocessor mode) configuration.

The 8086 signals may be categorised in 3 groups. The first are the signals having common functions in minimum and also maximum mode, the second are the signals that contain special functions for minimum mode and the third are the signals having special functions for maximum.
