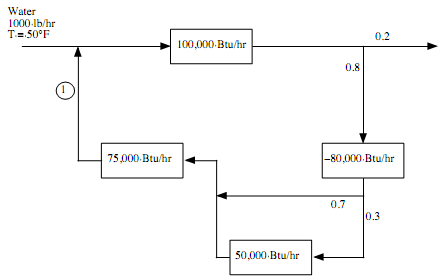

Consider the water heat distribution system shown below where:
The fractions refer to the fraction of the stream ?owing, e.g. 20% of the stream leaving the 100,000 Btu/ hr heater goes to the exit. + Q is a heater, energy being added to the water stream
a) What is the outlet temperature?
b) What is the temperature of stream #1
