Fixed support, Mechanical Engineering

Assignment Help:

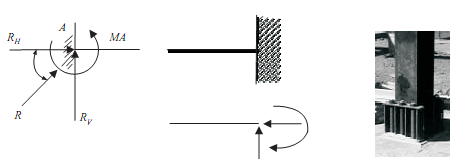

Fixed Support: At such support beam end is not free to translate or rotate at the fixed end there are three reaction horizontal reaction (RH), a vertical reaction (RV), and moment (M)

2182_Fixed Support.png
