Find the Location of the Centroid

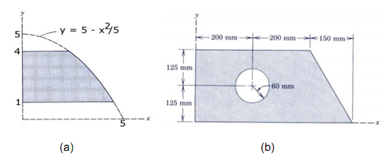

a)  Write the integrals for the determination of the location of the centroid of the area shown in Figure-(a).  Only set up the integral.

xc =

yc

b)  Find the location of the centroid (xc , yc) of the area shown in Figure-(b).

1454_Find the Location of the Centroid.png

Posted Date: 2/16/2013 12:09:47 AM | Location : United States
