Find the largest current out, Electrical Engineering

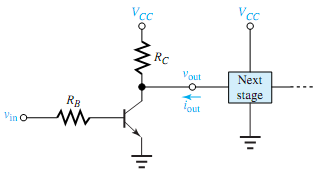

Q. Consider a BJT switch connected to the next stage, as shown in Figure, in which iout is likely to be negative when vout is high. Assume VCC = 5 V, RC = 1k, and the high range to be 4 to 5 V. Find the largest |iout | that can be tolerated.

108_Find the largest current out.png

Posted Date: 6/15/2013 5:44:05 AM | Location : United States
