Find the fourier series for the square wave, Electrical Engineering

Assignment Help:

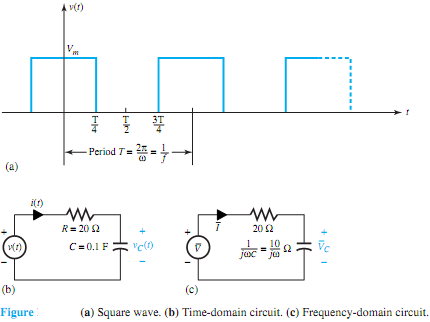

(a) Find the Fourier series for the square wave shown in Figure(a).

(b) Let a voltage source having the waveform of part (a) with a peak value of 100 V and a frequency of 10 Hz be applied to an RC series network with R = 20  and C = 0.1F. Determine the first five nonzero terms of the Fourier series of vC(t).
