Determine the hardware for multiplication
The hardware for multiplication consists of equipment given in Figure. The multiplier is stored in register and its sign in Q . The sequence counter SC iss at first set bits in multiplier. After forming each partial product counter is decremented. When complete and we stop the process.

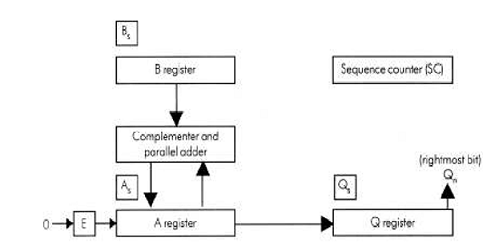

Figure: Hardware for Multiply Operation
