Determine the Forces in Members in Roof Truss

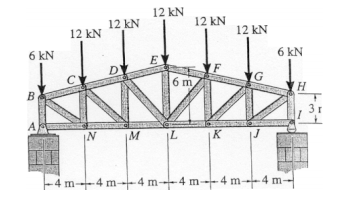

Determine the forces in members EF, EL, FL, and LK in the roof truss shown below and state whether the members are in tension or compression. The height from point H to point I is 3 m.

397_Determine the Forces in Members in Roof Truss.png

Posted Date: 2/16/2013 12:08:29 AM | Location : United States
