Determine the current in the circuit and the voltage, Electrical Engineering

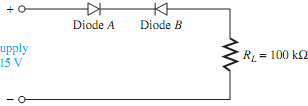

Q. Two identical junction diodes whose volt-ampere relation is given by Equation in which I_S = 0.1 µA, V_T = 25 mV, and η = 2, are connected as shown in Figure. Determine the current in the circuit and the voltage across each diode.
