Determine the best possible angle to reduce aerodynamic drag, Mechanical Engineering

Assignment Help:

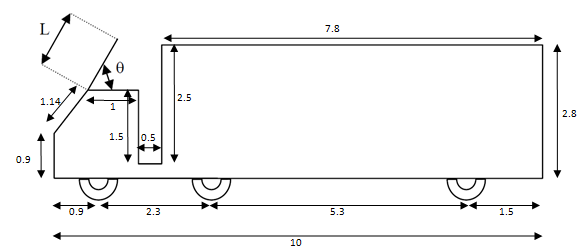

This is to determine the best possible angle to reduce aerodynamic drag. Mesh is to use tetrahedron of 0.5m wide.  I need the mesh generation and solver control on ansys 11.0. I also need all the simulations on ansys CFD 11.0 version. A high order advection scheme should be used.

Air is at 25 degrees Celsius and pressure is 1 bar. SST model of ansys should be used in analysing the problem. Turbulence is set at 10%. Residual target of 10-4 is used. Maximum iteration is 100.

The reason for this analysis is to determine the best plate length at which the truck will experience the least aerodynamic drag force.

872_Determine the best possible angle to reduce aerodynamic drag.png
