Calculate the amplitude of the dc component, Electrical Engineering

Assignment Help:

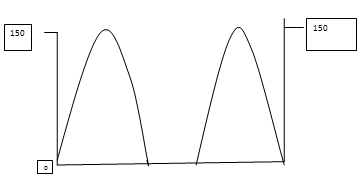

A periodic voltage consists of sinusoidal pulses having an amplitude of 150 V (SEE DIAGRAM BELOW). Use Fourier Series Expansion to calculate:

1.       the amplitude of the DC component,

2.       the fundamental,

3.       the effective value of the voltage,

4.       the effective value of all the harmonics.

V(Θ) =

2408_effective value.png

MY PARTIAL SOLUTION (NOT SURE WHERE TO GO FROM HERE):

252_partial solutin.png

334_A periodic voltage.png
