BUS TOPOLOGY

In a bus topology all devices are attached to a single long cable and any device can send data to any other device. For this function, coordination is needed to decide which device has to need the line at what time. The bus topology is given below:

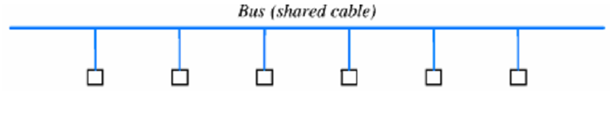

Figure  Bus topology
